FunTime is a simple DIY clock kit, that doubles up as automatic night lamp. There are numerous very good clock kits and projects out there. When I started to build this, I wanted to make one which I could use it in my home! Hence the design is simple yet cool. While building this kit we learn about how time is computed, converted to secs, mins, hours, days and eventually into years! We will also learn about measuring light and controlling a LED depending on time and light. The end goal is build a cool wall clock, use the time and the light intensity to turn on the night lamp. So let's get started!

Schematic

You may download the pdf version of the schematic.

Atmega328 with 8MHz

The heart of the project, is the Atmega328P chip. You may use a Arduino Uno, Pro Mini or directly the chip (recommended). The modified boot-loader and source code can be found in the downloads section.

Power Supply

The project is powered by a 5V DC adapter. When the power fails, in order to keep time it switches to the CR2032 coin cell. This is done by the diode ring section of the schematic.

Arduino

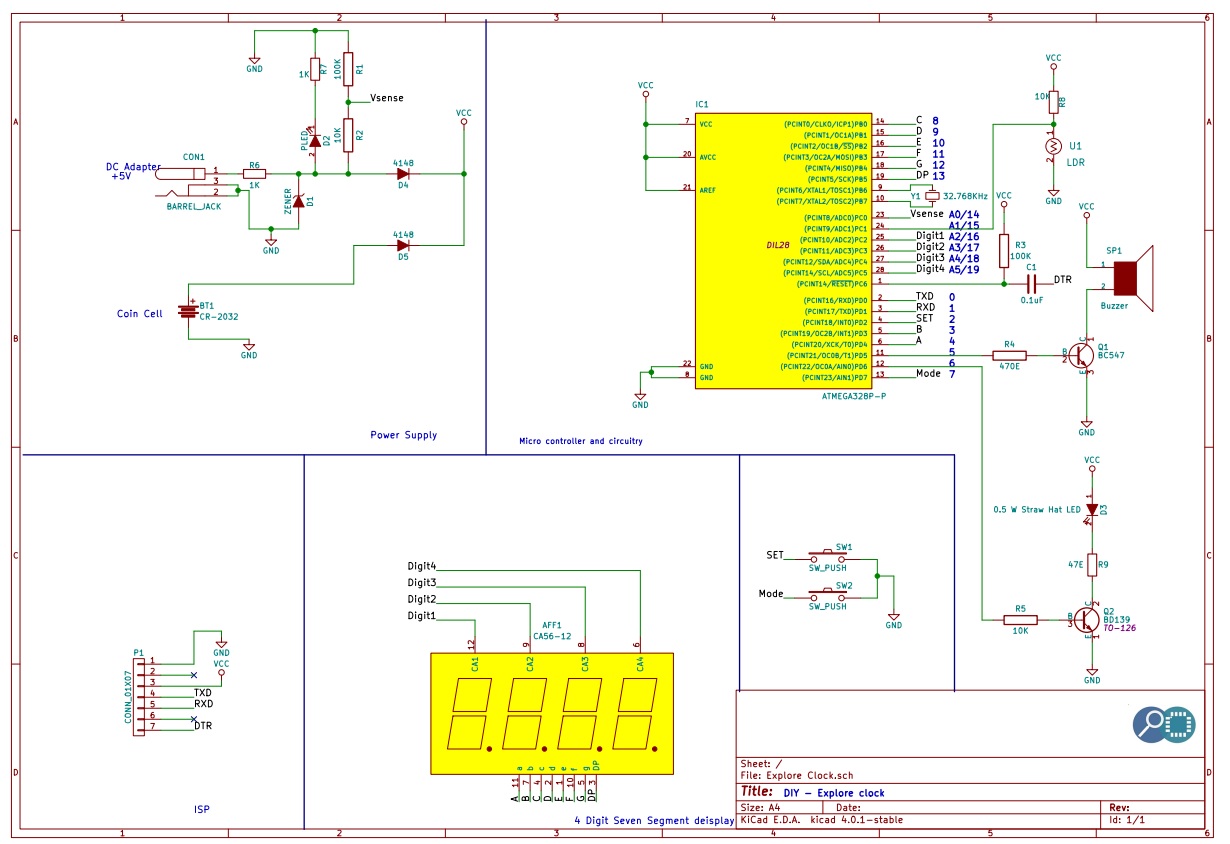

The project is based on Atmega328. The schematic also includes a buzzer to add Alarm functionality, a light sensor to to switch on a 0.5 watt LED depending on light and time. Schematic funTime.jpg

Hook up

Soldering the DIY Kit

You may purchase the funTime Kit from the EE Store. This will come with the PCB with all the parts needed. Solder the parts as per the Bill of Materials(BOM). Assemble the acrylic case and you should be ready to go.

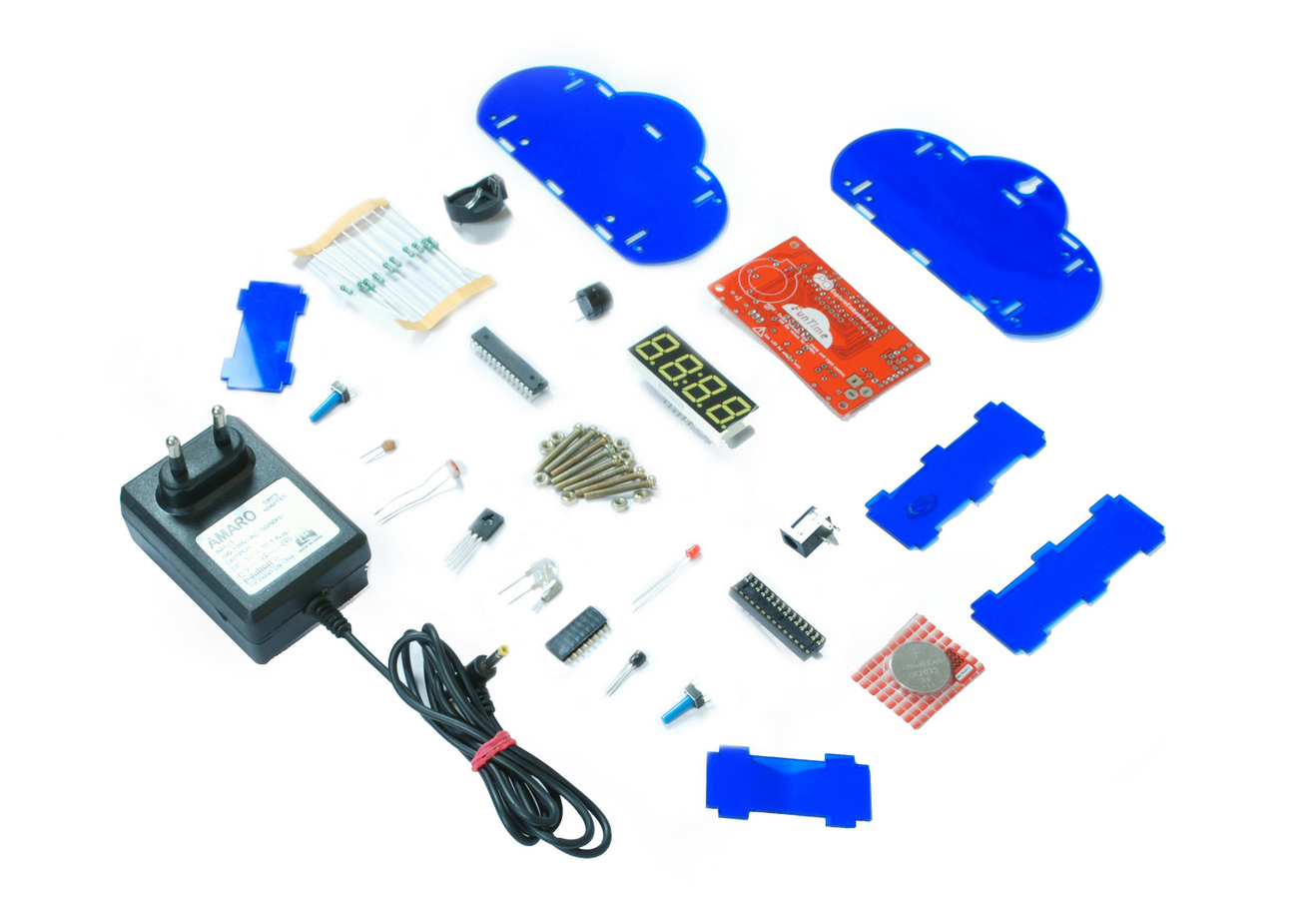

FunTime 0.JPG

Component list

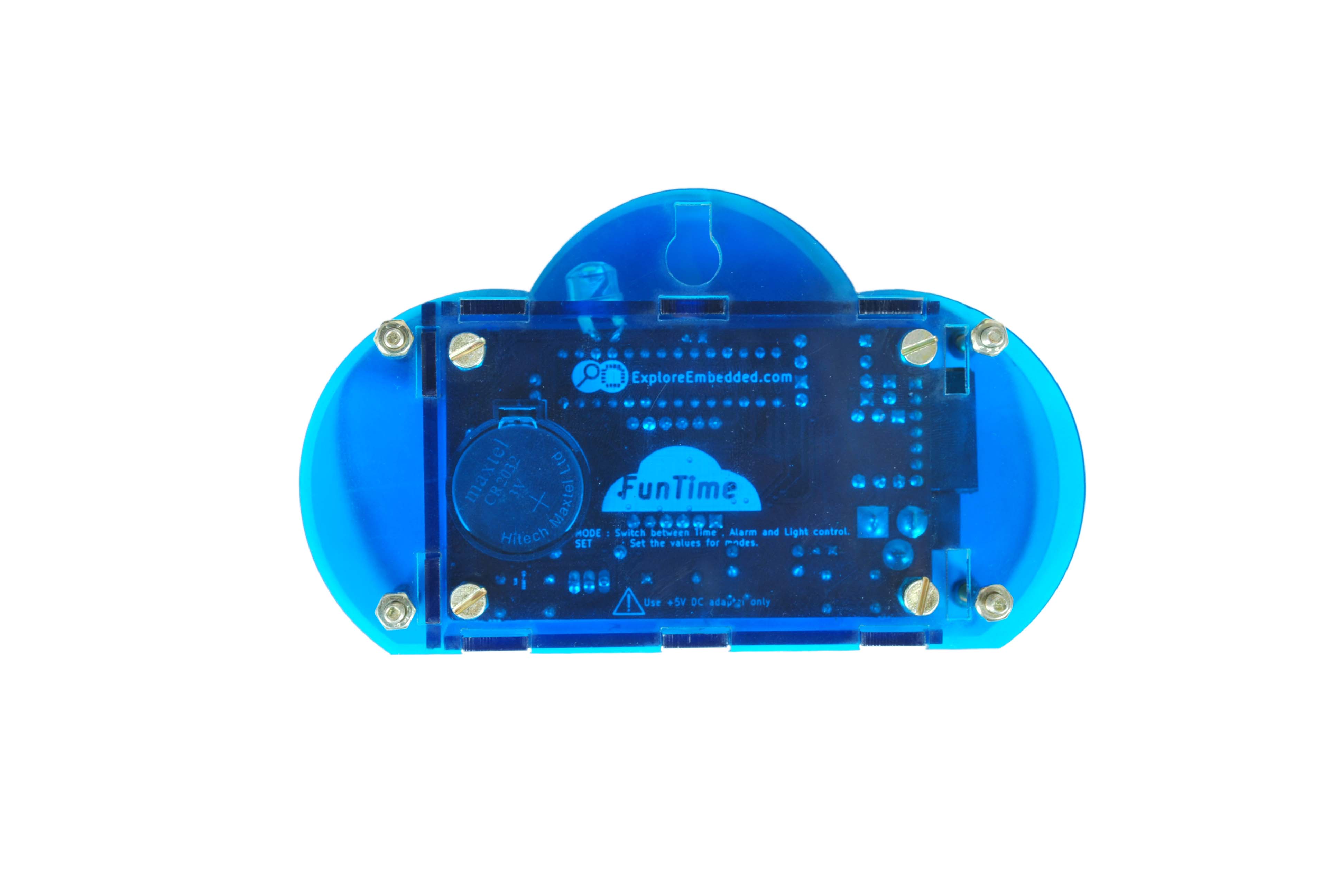

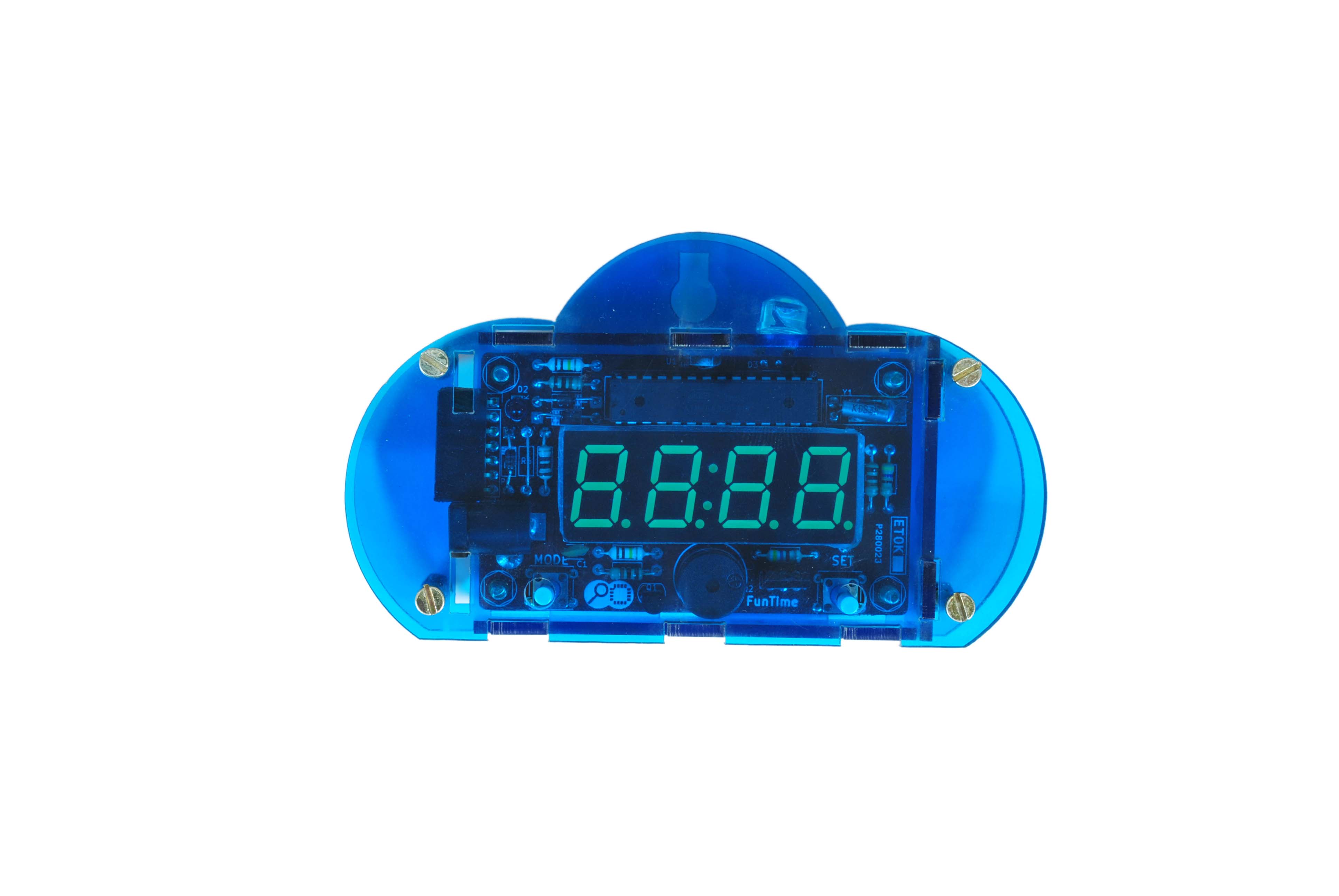

Assembly-BOM.jpg FunTime 0a.jpg 0 funTime 1.jpg FunTime 2.jpg FunTime 3.jpg

Soldering on a Perf Board

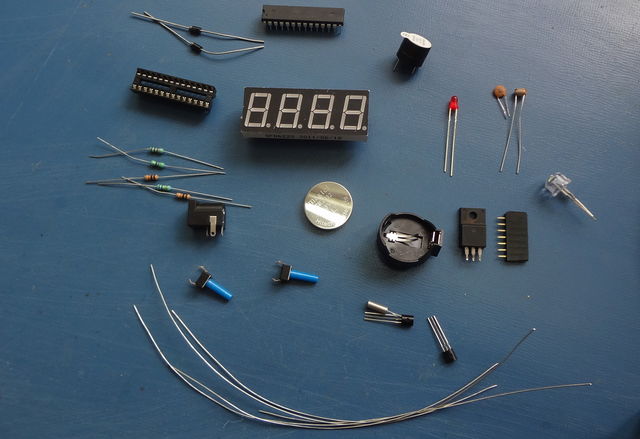

These are all the parts you will need. DIY funTime 0.JPG

We will start out by cutting the perf board, so that it fits in the enclosure. It will be difficult to solder the components and then cut the perf-board.

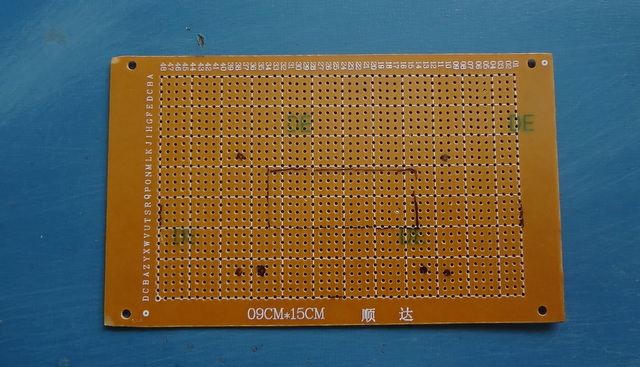

The blank perf board of standard size 9CM x 15CM.

DIY funTime 1.JPG

Cut out the shape as desired, we wanted to make it look like cloud.

DIY funTime 2.JPG

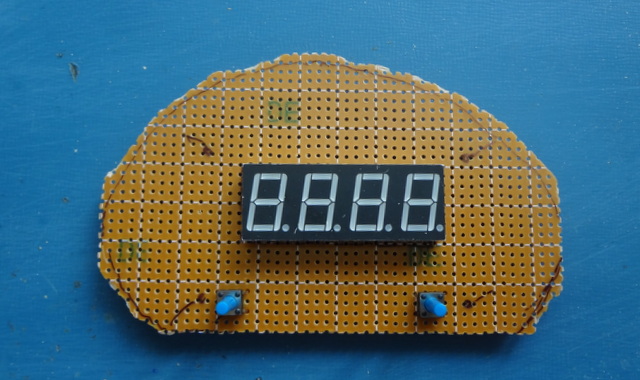

Start soldering the components. It is better to fix the display and switches first, so that they align with the cut-outs made on the enclosure.


Now solder the remaining parts as per the schematic.

DIY funTime 3.JPG

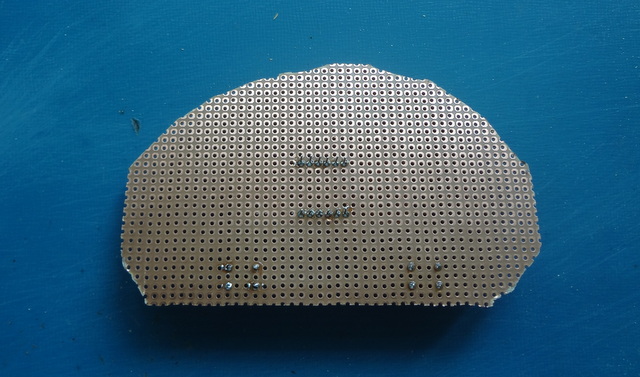

DIY funTime 4.JPG

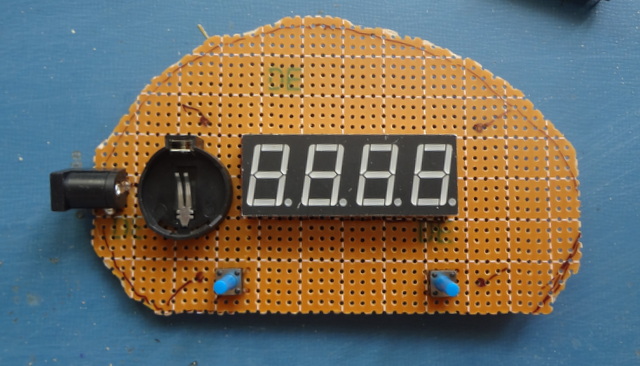

DIY funTime 5.JPG

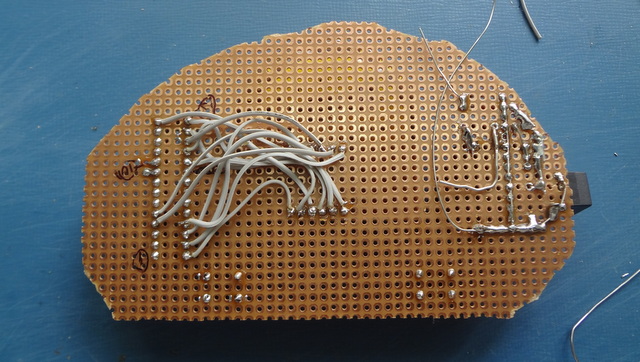

DIY funTime 6.JPG

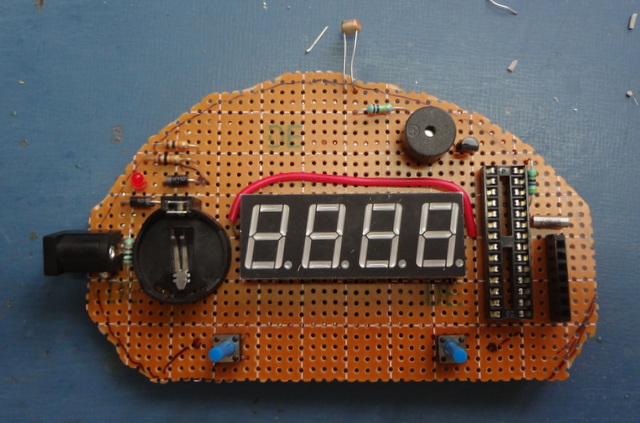

DIY funTime 7.JPG

Before you go ahead and it turn it, check the following the things:

  • The GND and VCC of the circuit are not short.
  • Visually verify, look for any solder blobs, shorts etc.
  • Burn the bootloader and the code using a programmer to the chip.

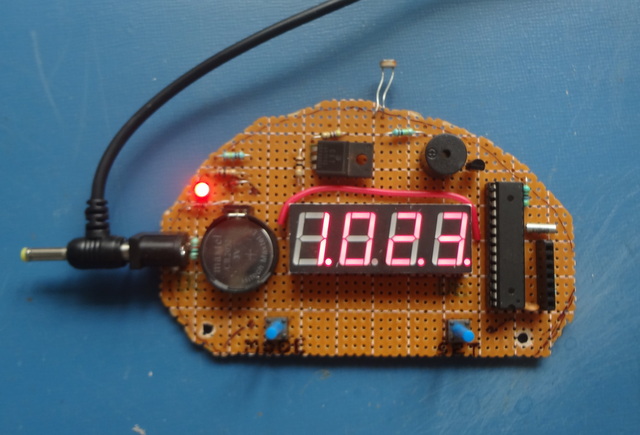

Turn on the kit and see if it displays the time set in the code. DIY funTime 8.JPG

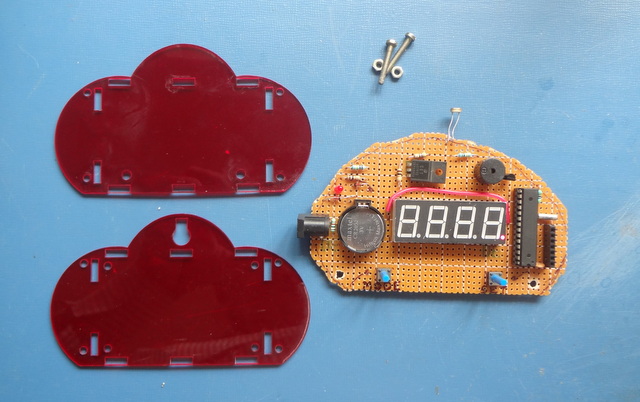

Now its time to put the acrylic case on!

DIY funTime 9.JPG

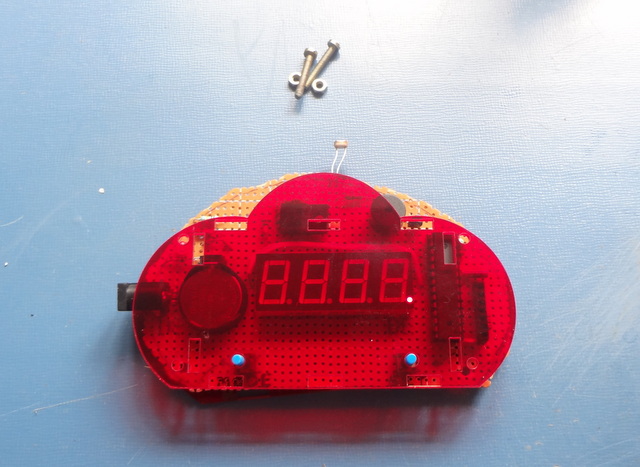

DIY funTime 10.JPG

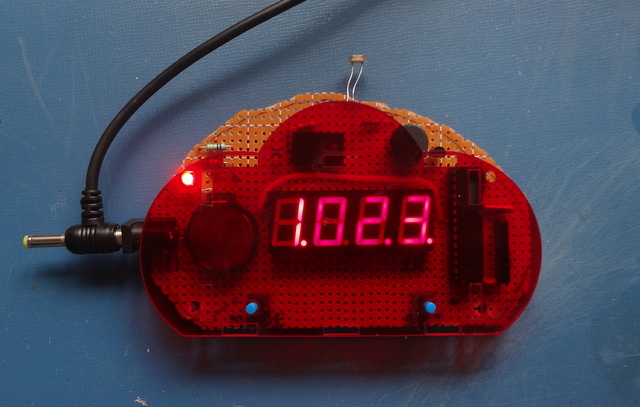

DIY funTime 11.JPG

Code

The kit comes with Atmega328 with bootloader and the firmware. The latest firmware can be found at https://github.com/ExploreEmbedded/FunTime

References and Credits

The clock was inspired by the BigTime Watch kit from Sparkfun.
