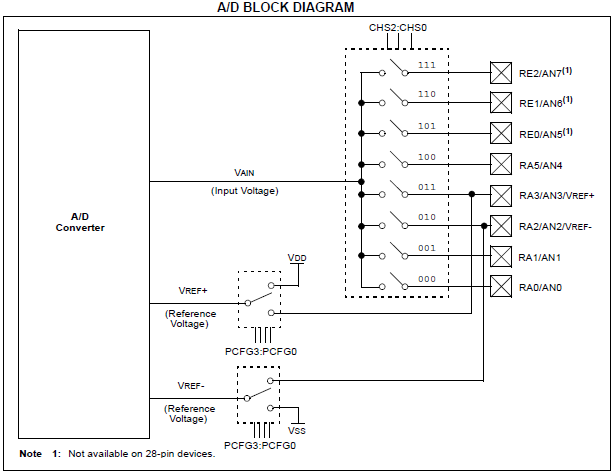

[[FILE:PicAdcBlockDiagram.png]] | [[FILE:PicAdcBlockDiagram.png]] | ||
| + | |||
| + | =Hardware Connections= | ||
| + | [[File:ADCExample bb.png|none]] | ||
=Code= | =Code= | ||
Revision as of 14:30, 16 May 2016

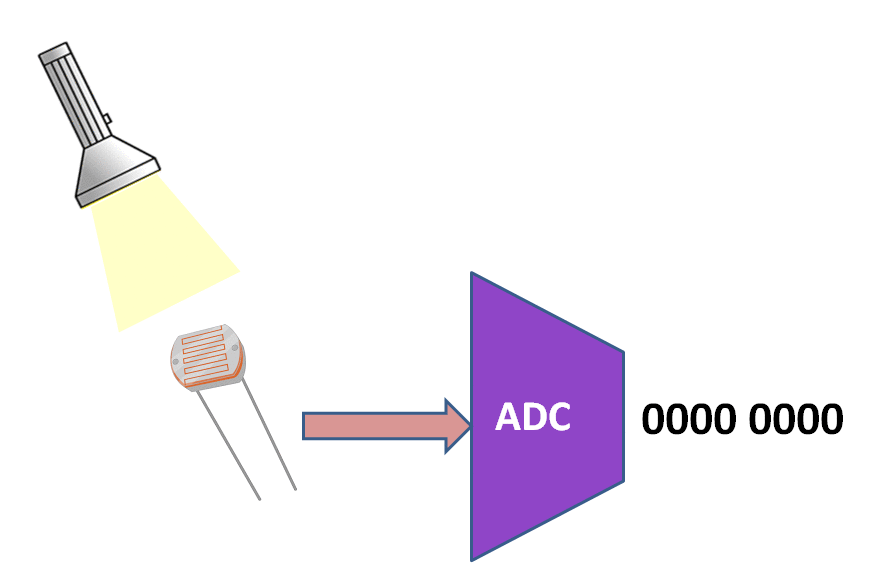

In this tutorial we are going to discuss how to use the inbuilt PIC16f877A ADC.
We will be reading the ADC values from chanel Zero and transmitted on UART at 9600 baudrate.
Contents
PIC16F877A ADC pins
PIC16F877A has an inbuilt 10 bit Successive Approximation ADC which is multiplexed among 8 input pins.
The A/D module has high and low-voltage reference input that is software selectable to some combination of VDD, VSS, RA2 or RA3.
With 5v as the Vref the resolution of Pic16f877a ADC can be determined as below:
$$resolution of ADC = Vref/(2^{10}-1) = 5/1023 =0.004887 = 4.887mv$$
The below table shows the ADC input pins multiplexed with other GPIO pins.
The ADC pin can be enabled by configuring the corresponding ACON1 register.
When the ADC function is selected for a pin ,then other Digital signals are disconnected from the ADC input pins.
| Adc Channel | Pic16f877a Pin | Pin Function |
|---|---|---|
| 0 | RA0 | AN0 |
| 1 | RA1 | AN1 |
| 2 | RA2 | AN2/VREF- |
| 3 | RA3 | AN3/VREF+ |
| 4 | RA5 | AN4 |
| 2 | RE0 | AN5 |
| 3 | RE1 | AN6 |
| 4 | RE2 | AN7 |
ADC Registers
The below table shows the registers associated with PIC16F877A ADC.
| Register | Description |
|---|---|
| ADCON0 | Used to Turn ON the ADC, Select the Sampling Freq and also Start the conversion. |
| ADCON1 | Used to configure the gpio pins for ADC |
| ADRESH | Holds the higher byte of ADC result |
| ADRESL | Holds the lower byte of ADC result |
Now lets see how to configure the individual registers for UART communication.
| ADCON0 | |||||||
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| ADCS1 | ADCS0 | CHS2 | CHS1 | CHS0 | GO/DONE | — | ADON |
ADCS2-ADCS0:A/D Conversion Clock Select bits
CHS2-CHS0:Analog Channel Select bits
000 = Channel 0 (AN0)
001 = Channel 1 (AN1)
010 = Channel 2 (AN2)
011 = Channel 3 (AN3)
100 = Channel 4 (AN4)
101 = Channel 5 (AN5)
110 = Channel 6 (AN6)
111 = Channel 7 (AN7)
GO/DONE: A/D Conversion Status bit
When ADON = 1:
1 = A/D conversion in progress (setting this bit starts the A/D conversion which is automatically cleared by hardware when the A/D conversion is complete)
0 = A/D conversion not in progress
ADON: A/D On bit
1 = A/D converter module is powered up
0 = A/D converter module is shut-off and consumes no operating current
| ADCON1 | |||||||
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| ADFM | ADCS2 | — | — | PCFG3 | PCFG2 | PCFG1 | PCFG0 |
ADFM: A/D Result Format Select bit
1 = Right justified. Six (6) Most Significant bits of ADRESH are read as ‘0’.
0 = Left justified. Six (6) Least Significant bits of ADRESL are read as ‘0’.

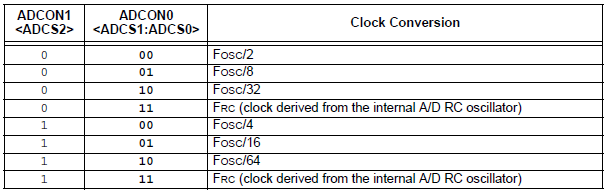

ADCS2: A/D Conversion Clock Select bit
Check ADCS1:ADCS0 of ADCON0 register.
PCFG3-PCFG0: A/D Port Configuration Control bits
Hardware Connections
Code
Below is the sample code to read the ADC value of channel0 and send it on UART at 9600 baud rate.
Using ExploreEmbedded Libraries
